WEB GUIDE SYSTEM

a WEB GUIDING SYSTEM is a system that aligns and controls the position of flat material as it moves through a converting machine. These systems ensure accurate alignment and preventing issues like misalignment, wrinkles and other defects.

Benefits of a Web Guiding System:

  • Ensures the Material is Positioned correctly
  • Prevents issues like Misalignment, Wrinkling, and Tearing
  • Enables High-Speed and High-Efficiency Production
  • Reduces Waste caused by Misalignment

Four Main Components:

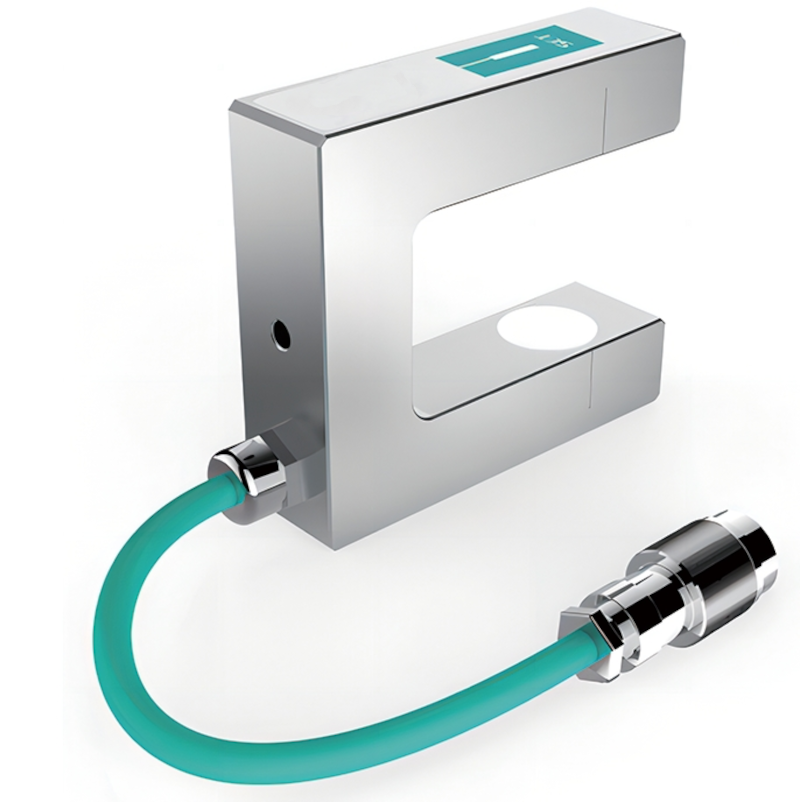

SENSOR

CONTROLLER

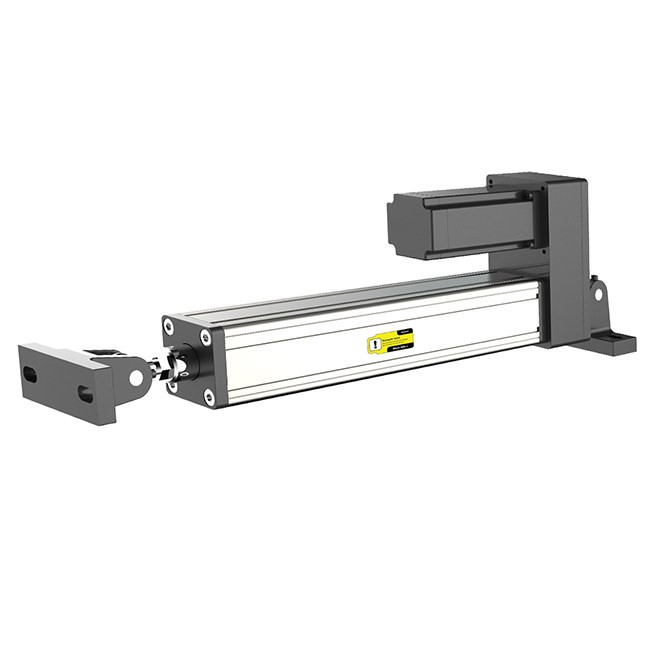

ACTUATOR

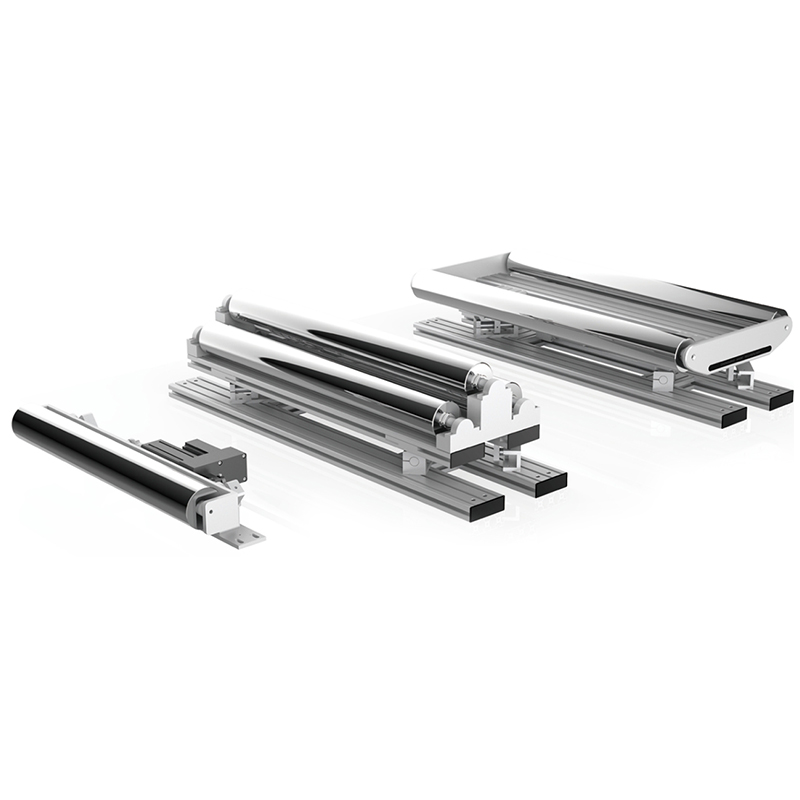

ROLLER FRAME

Complete Webguide Systems:

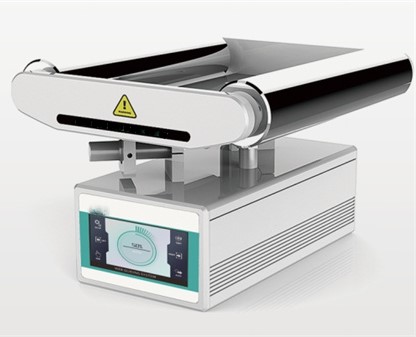

W500:

This all-in-one web guiding system is a high performance system with full touch screen operation and is suitable for automatic web guiding. It detects signals using ultrasonic, infrared, or CCD sensors to calculate the material’s offset

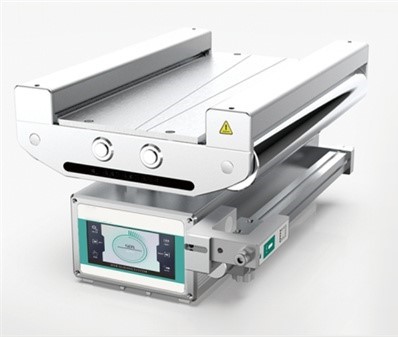

W500 WITH SPLICE TABLE:

This is a high-performance servo web guide system with full touchscreen operation. It features a manual/automatic paper pressing platform, making it more convenient to load or replace material. The system detects deviations using ultrasonic, infrared, or CCD sensors, calculates the material shift, and precisely corrects it by driving a servo motor with encoder feedback.
