Multi Layer Blown Film Plant extruder

Triple the Layers. Triple the Efficiency.

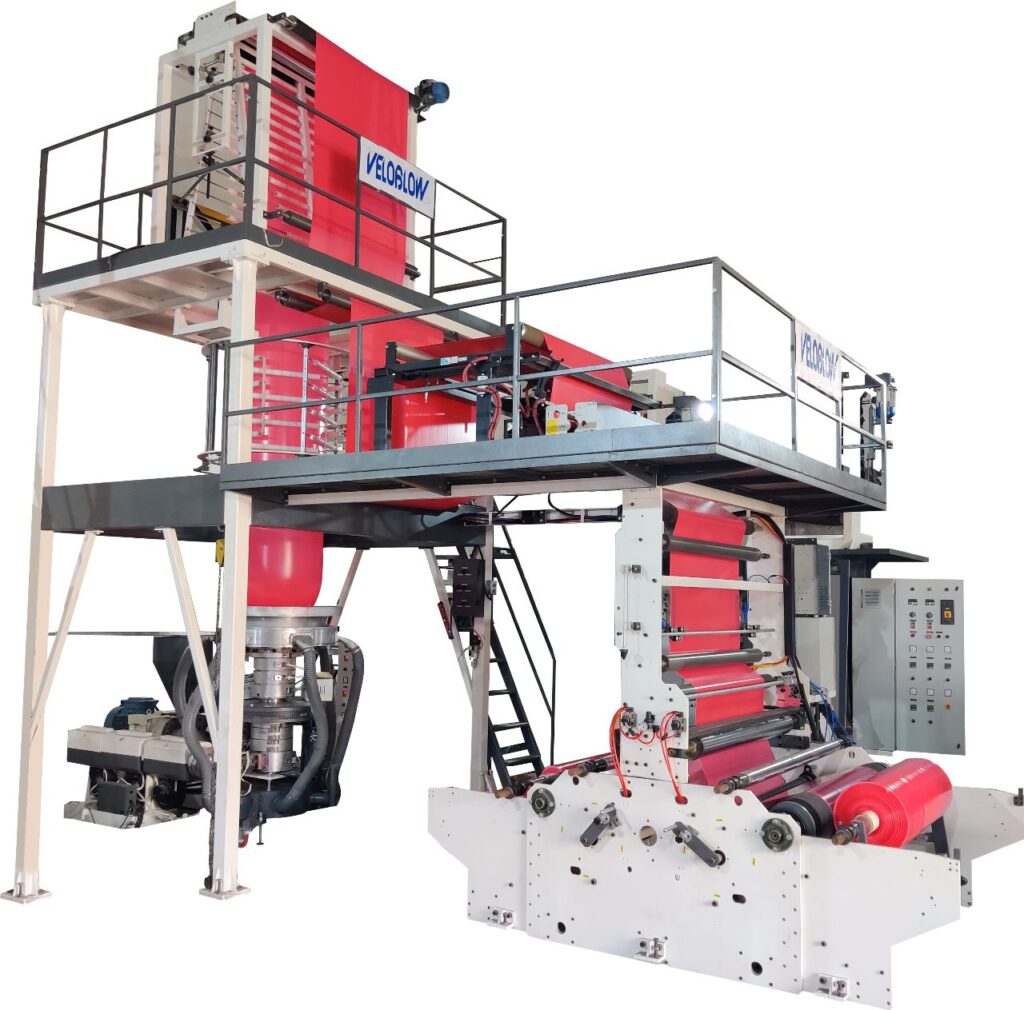

The Multi Layer Blown Film Plant Extruder is a high-performance 3-layer blown film extrusion machine, designed as an entry level multilayer solution. It is engineered to deliver superior film quality, high output and to be energy efficient.

3 Layer Technology:

  • Each extruder feeds and individual layer of film – Outer (A), Core (B) and Inner (C) – allowing precise control over film strength, clarity and barrier properties.
  • The design ensures uniform material distribution, excellent melting performance and consistent film thickness.

Key Features:

  • High Output, Low Conversion Cost
  • Enhanced Film Strength and Clarity
  • Quick Return on Investment
  • Energy Efficient Operation
  • Ideal for HDPE, LDPE and Blended Films

Multi Layer Film Extruder HD/LD Models:

Vishva GlobalX offers a range of Multi Layer (3 Layer) Blown Film Extrusion Machines designed for HDPE and LDPE applications. These machines are engineered for maximum productivity, material flexibility and exceptional film quality.

VELOBLLOW

45 x 45 x 45 (Entry Level)
  • Output (kg/hr) – 130 – 140
  • Screw Diameter (mm) – 45 x 45 x 45
  • Main Motor Power (H.P) – 20 x 3
  • Working Width (mm) – 1000 – 1200
  • Thickness Range (microns) – 20 – 150

VELOBLLOW

45 x 55 x 45
  • Output (kg/hr) – 170 – 190
  • Screw Diameter (mm) – 45 x 55 x 45
  • Main Motor Power (H.P) – 20 x 2/30 x 1
  • Working Width (mm) – 1200 – 1400
  • Thickness Range (microns) – 20 – 150

VELOBLLOW

55 x 55 x 55
  • Output (kg/hr) – 210 – 240
  • Screw Diameter (mm) – 55 x 55 x 55
  • Main Motor Power (H.P) – 30 x 3 / 30 x 2 & 40 x 1
  • Working Width (mm) – 1400 – 1800
  • Thickness Range (microns) – 20 – 150

VELOBLLOW

55 x 65 x 55
  • Output (kg/hr) – 210 – 240
  • Screw Diameter (mm) – 55 x 65 x 55
  • Main Motor Power (H.P) – 30 x 3 / 30 x 2 & 40 x 1
  • Working Width (mm) – 1400 – 1800
  • Thickness Ranges (mm) – 20 – 150
